Reimagining the downlight experience.
As a result of years of deeply understanding customer needs, every detail of the ION R Series is meticulously designed to balance universality, form, function and performance, making it the one-stop solution for every lighting requirement.
A modular
future of lighting.
future of lighting.
With an extensive range of accessories and an engine built for modularity, the ION R Series can be customised for every lighting intent. Purposely engineered, trust this versatile downlight range to meet all your downlighting needs in a project.
Baffle
Allows further visual customisation with a wide range of baffle finishes.
Allows further visual customisation with a wide range of baffle finishes.
Secondary optic

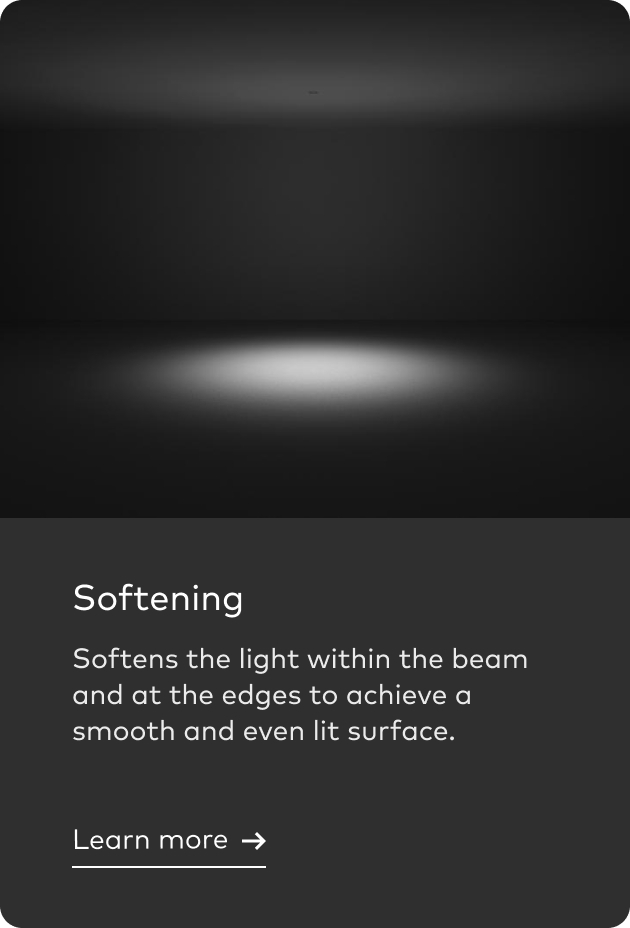

Add an additional layer of optical control opting for an additional softening, honeycomb or elliptical optic.
Add an additional layer of optical control opting for an additional softening, honeycomb or elliptical optic.
IP54 Seal
Allows the ION R Series to operate at IP54, ensuring protection against dust and water splashes.
Allows the ION R Series to operate at IP54, ensuring protection against dust and water splashes.
Primary optic
Designed from the ground up, the ION R Series' lens technology has been precisely engineered to perfectly align with the COB LED, delivering outstanding beam control with minimal light spillage.
Designed from the ground up, the ION R Series' lens technology has been precisely engineered to perfectly align with the COB LED, delivering outstanding beam control with minimal light spillage.
Engine
Comes with the heat-syncing ability to handle operation heat and promote passive airflow, ensuring quality and performance for a long time.
Comes with the heat-syncing ability to handle operation heat and promote passive airflow, ensuring quality and performance for a long time.
Trim
Designed to support easy assembly and modularity with the engine.
Designed to support easy assembly and modularity with the engine.
One series.
Numerous applications.
Numerous applications.
With its varied accessories and optics, there are various ways the ION R Series can be customised and installed in a project.
Lighting
simplified.
simplified.
Designed to function seamlessly between mounting options and support quick installation, unlock a simpler and hassle-free way to light with the ION R Series.
Interchangeability
Easily remove the engine from the recessed trim to install into surface mounted and suspended canisters.
Clip System
Effortlessly secure the luminaire into the ceiling with easy-to-control clips built into the trim.
Quick Installation
Unlock a toolless and hassle-free setup with built-in clip system and a ball-bearing design along the trim.

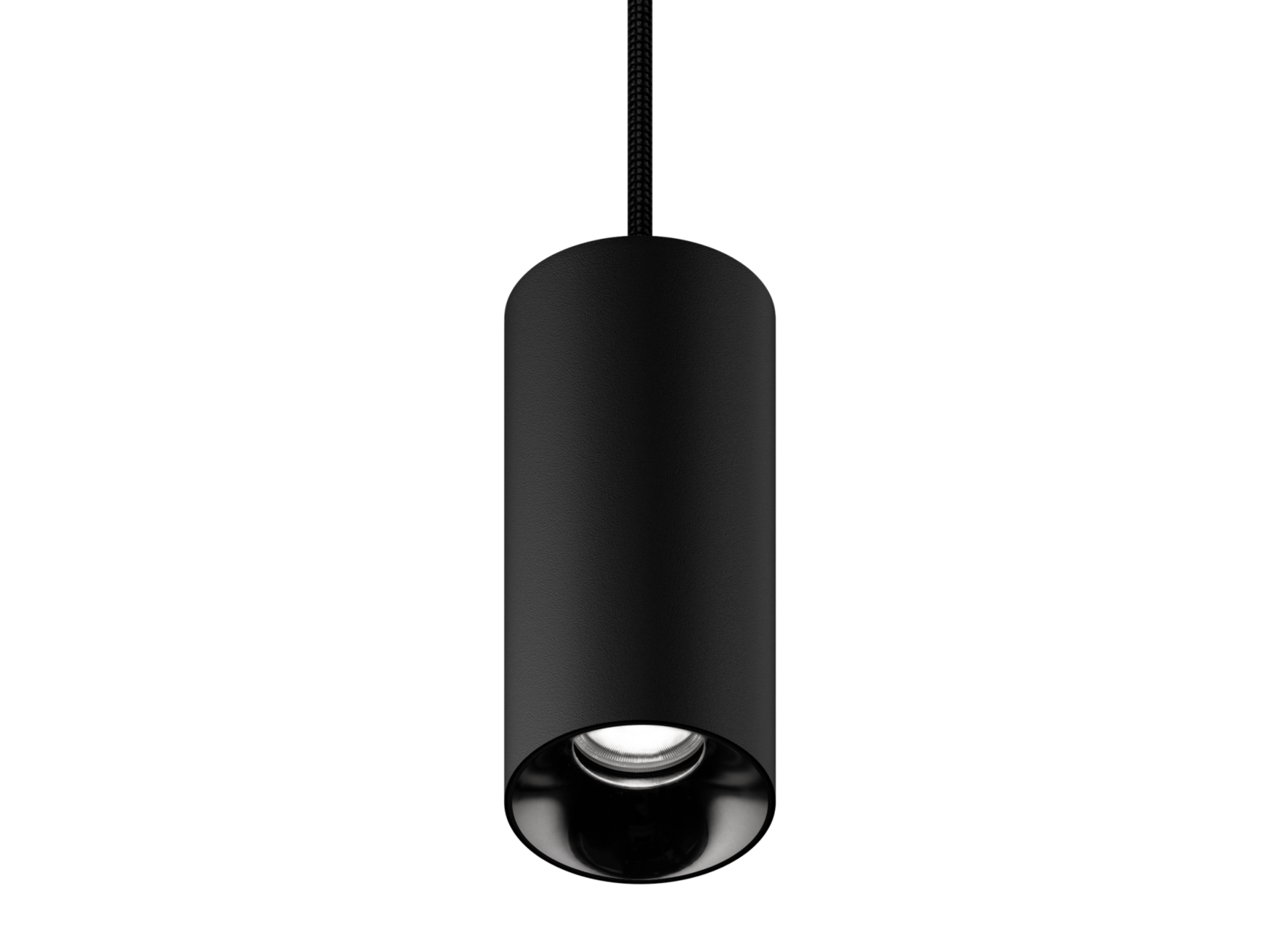

Following the darklight concept, the Stealth Metallic baffle minimises the light source's presence. From certain angles, the light source is completely hidden from the peripheral vision. This baffle is ideal for spaces that require maximum visual comfort without sacrificing the output.
One engine.
Multiple beam options.
Multiple beam options.

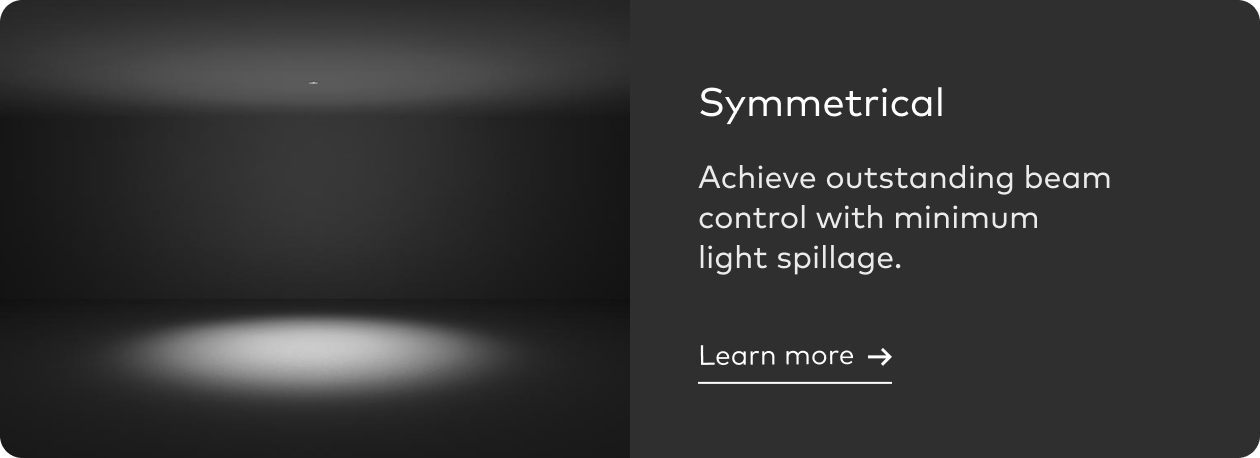

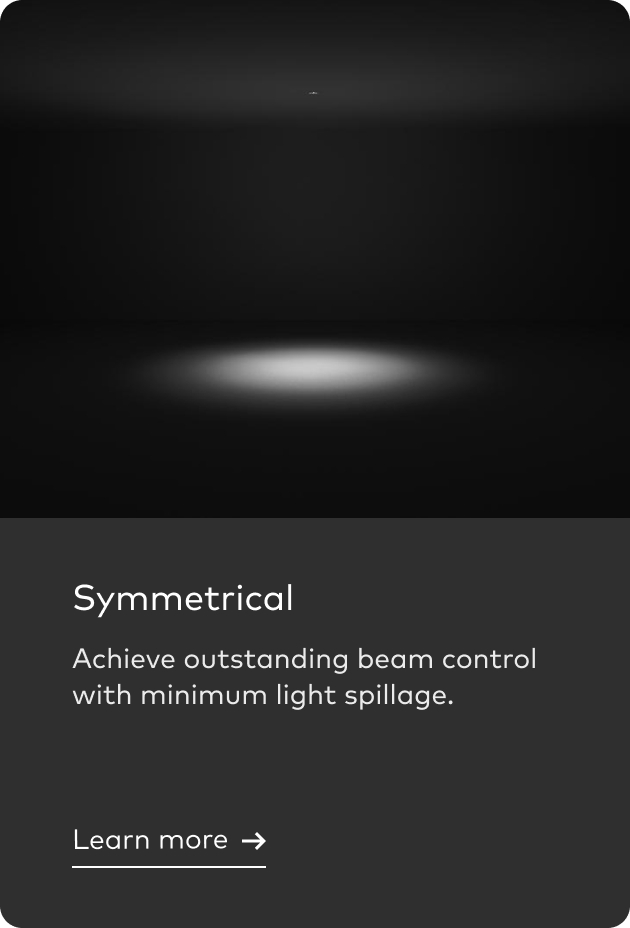

Take your design further with our extensive range of beam options. Customise the ION R to deliver the right lighting effect to your projects.
The downlight range with unmatched performance.
Equipped with the latest technology in LED, optics and control systems, the ION R Series is the one true downlight series for performance.
Quick turnaround.
Pair your ION R with our in-stock and ready-to-ship drivers for a fully customised lighting solution in as little as 2 weeks.
Types
Small, Medium, Large, XL
Medium, Large
Power (Up to)
11W, 15W, 32W, 43W
15W, 32W
Mounting

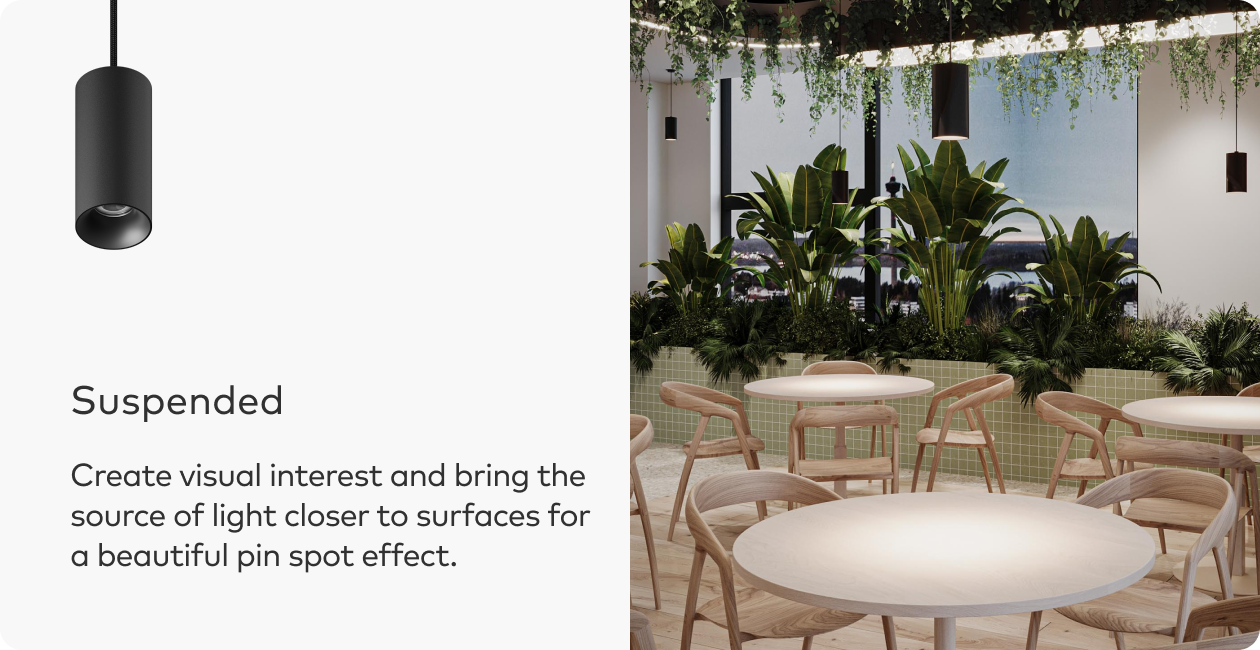

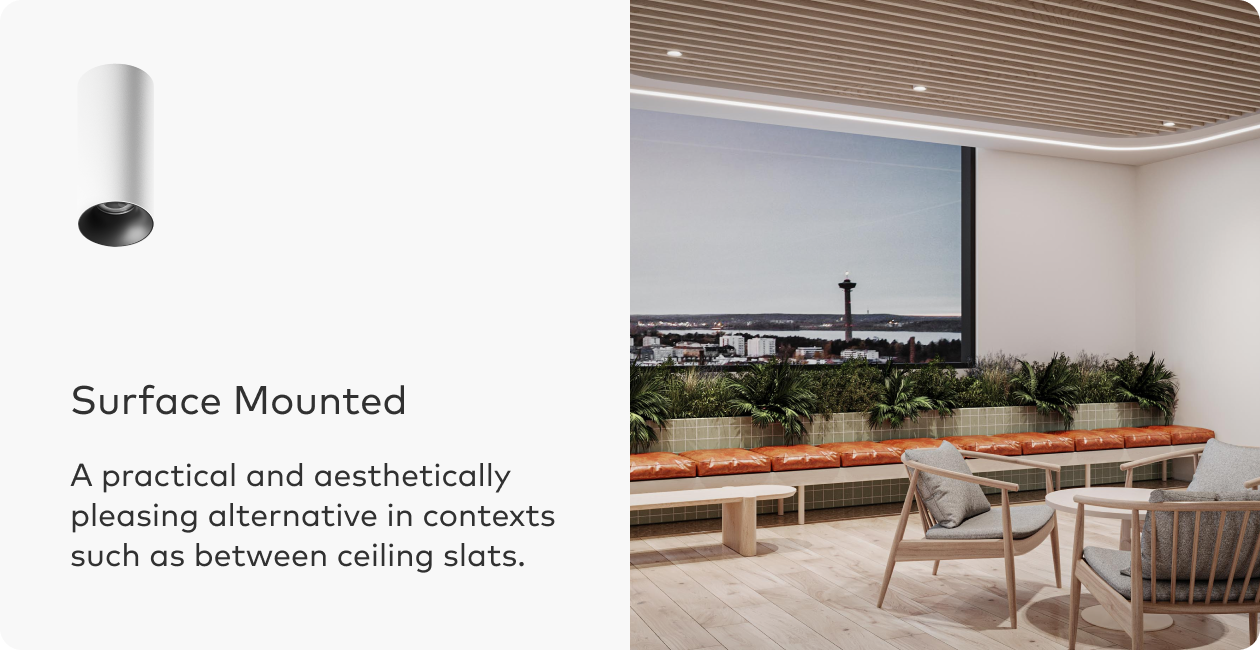

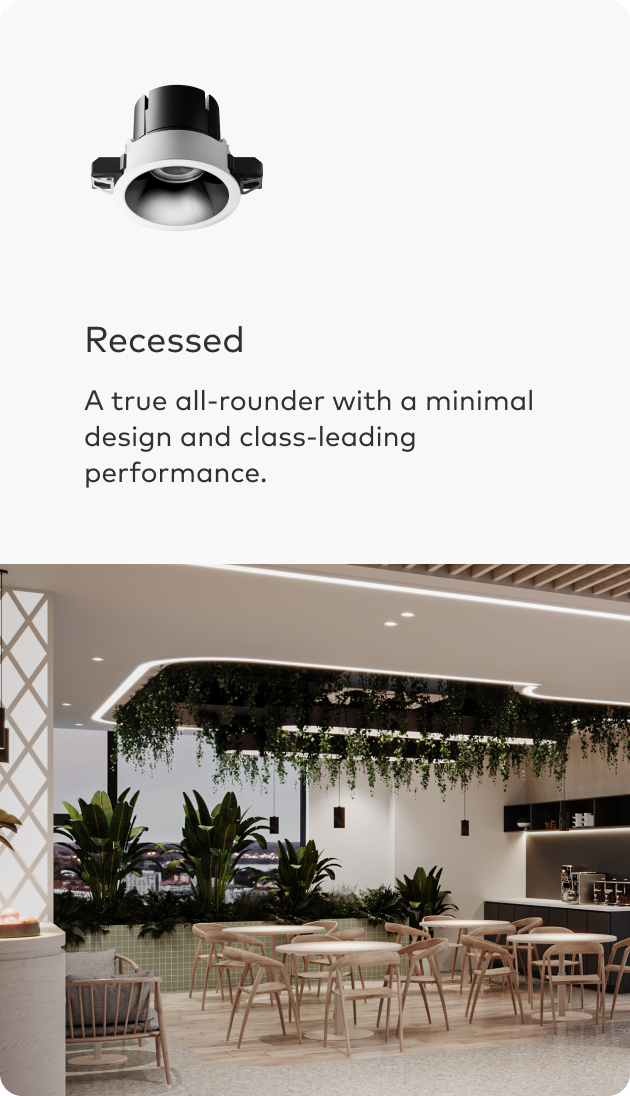

Recessed, Surface Mounted, Suspended
Recessed, Surface Mounted, Suspended
Absolute Luminous Flux (up to)
1155, 1548, 3587, 4767
840, 1792
Beam Type
Standard, Elliptical
Wallwasher
Beam Angle
Narrow (22-30°), Medium (40-50°), Wide (60-70°)
50° Asymmetrical
Beam Angle (Elliptical)
Narrow (20x60°), Medium (30x70°), Wide (50x80°)
-
Illumination Type
Horizontal
Vertical
CCT
2700K ,3000K, 4000K, Tunable White (2700K - 6500K)
2700K ,3000K, 4000K, Tunable White (2700K - 6500K)
UGR
<13
<16
Colour Deviation
≤2
≤2
Lifetime
>55,000h L90B10
>55,000h L90B10
IP Rating
IP54 (Roomside)
IP54 (Roomside)
IK Rating
-
-
Driver
Phase-cut, Non-Dim, DALI, Bluetooth
Phase-cut, DALI, Bluetooth
Warranty
5 years
5 years
Availability
Stocked
Crafted in Australia
Large
Narrow (20x60°), Medium (30x70°), Wide (50x80°)
3587
<13
Phase-cut, DALI, Bluetooth
32W
Horizontal
IP65 (Roomside)
Standard, Elliptical
≤2
5 years
Recessed
2700K ,3000K, 4000K, Tunable White (2700K - 6500K)
IK10
Narrow (22-30°), Medium (40-50°), Wide (60-70°)
>55,000h L90B10
Made to order
Featuring 3 models and an extensive range of accessories, whatever your lighting requirements, the ION R has them covered.

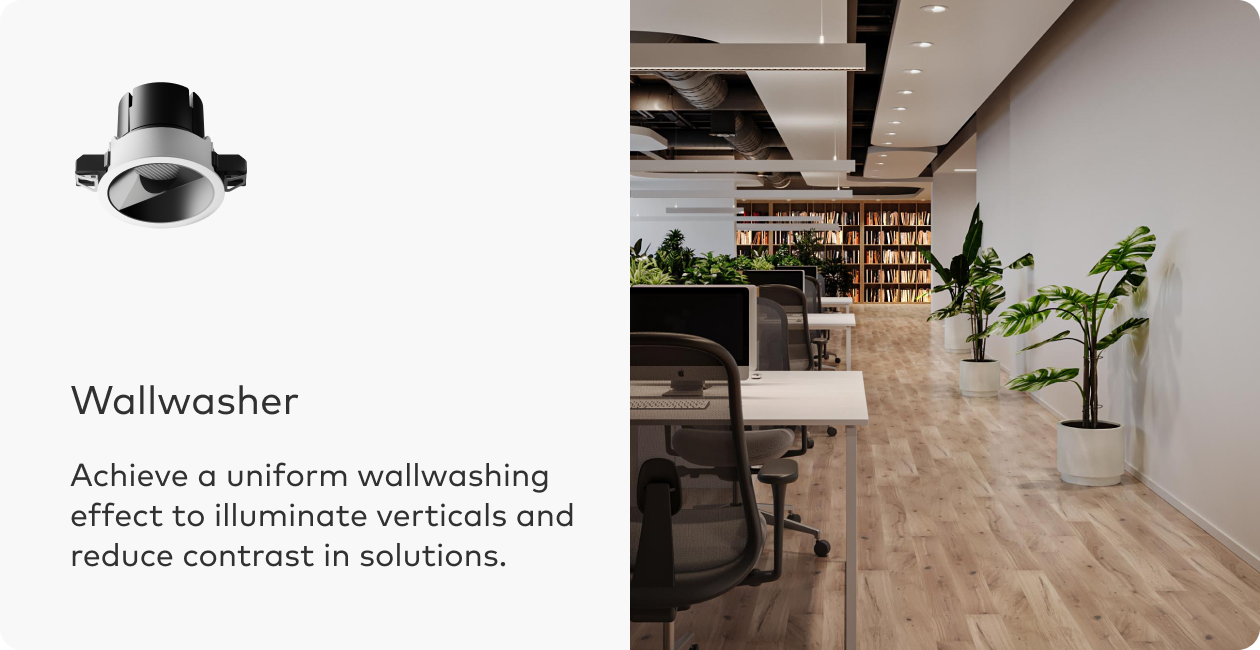

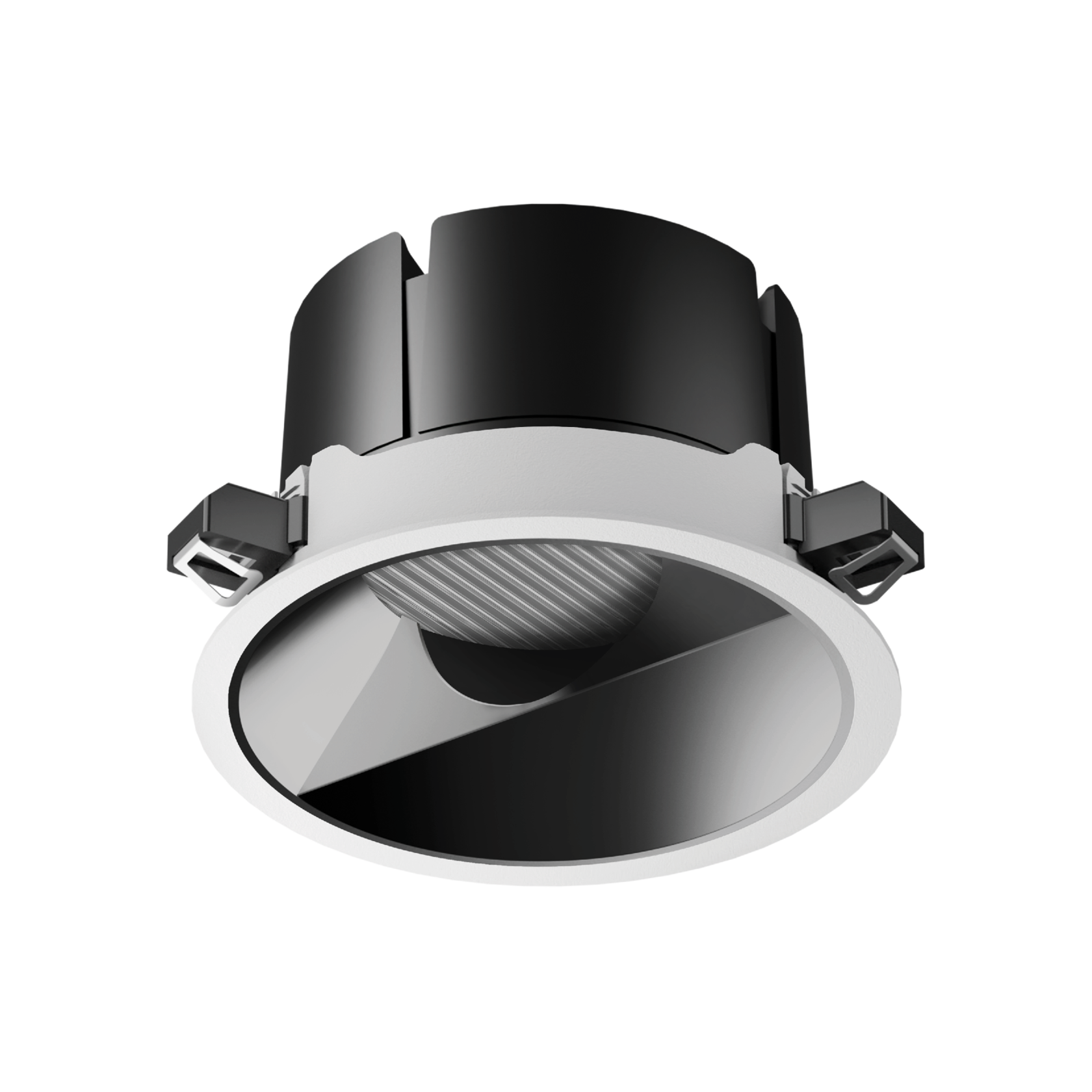

ION R Wallwasher
Allows uniform illumination on walls and vertical surfaces. Configurable by mounting options.
A versatile solution for projects of all sizes. Configurable by mounting options.

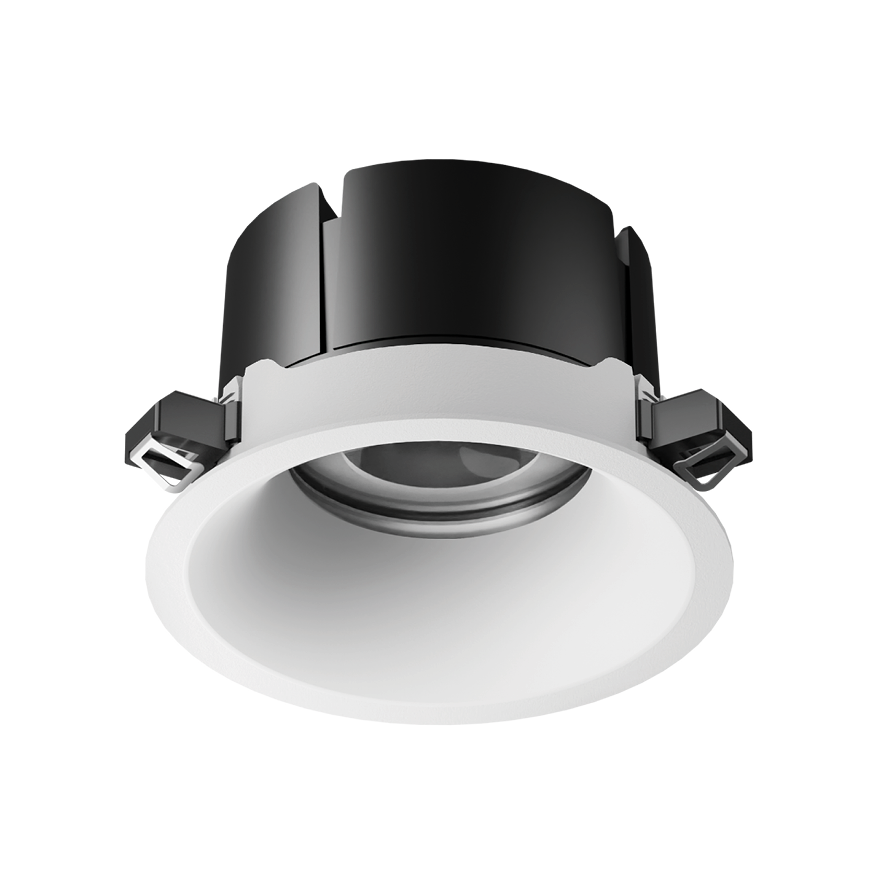

ION R Downlight

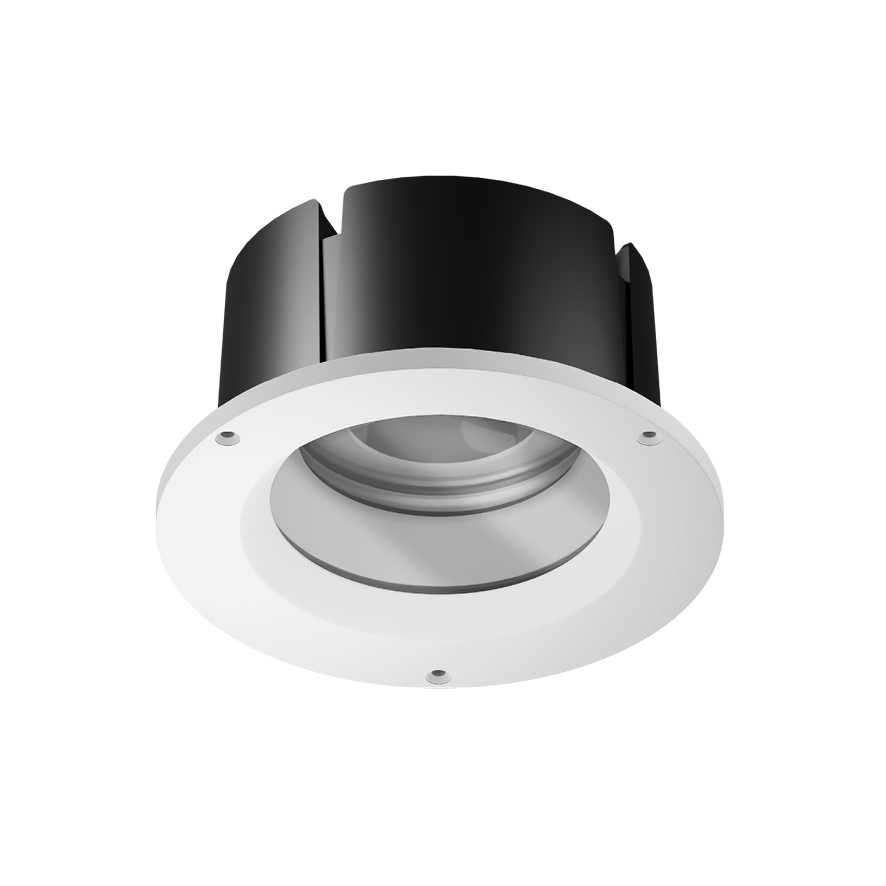

ION R Vandal-proof Downlight
Engineered for easy maintenance and lasting performance in outdoor applications.
Your lighting superpower

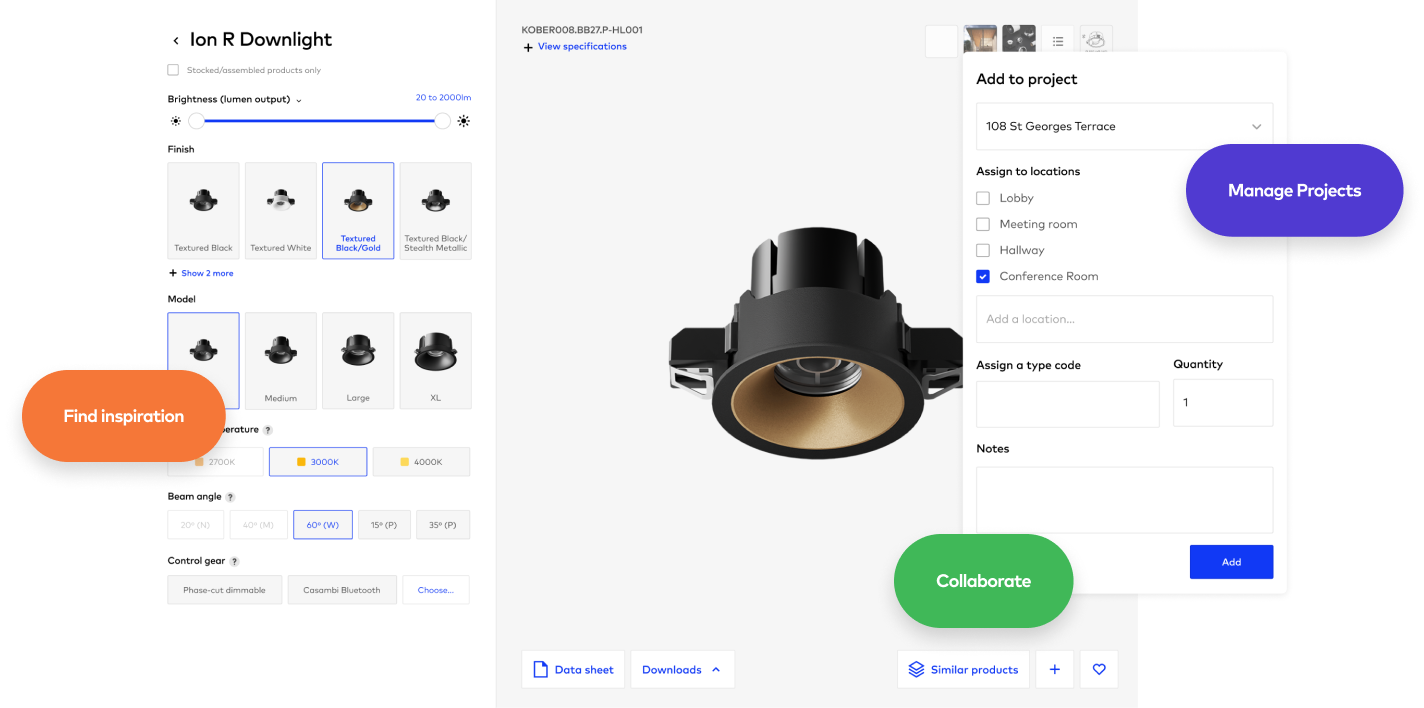

Wonder how this product compares to others in the Unios range? Or if this is the perfect product for what you need? Check out the new Unios Toolbox, where we’ve made it easy to find exactly what you need, in a matter of seconds.
To request a product demonstration, a product sample or more information of the ION R Series, please complete this form.
